WallPanelLite is WallPanelDraw with wall analysis (wind and axial; no shear or seismic) and a component design feature. This feature allows for the design and analysis of beams, columns, joist, headers and rafters.
The features of Component design are listed below. To view the features included in WallPanelLite identical to WallPanelDraw CLICK HERE.
Simple input screens
Design Beams/Joists, Column/WallStud, Headers, and Rafters
Analysis in seconds
Print and review reports
Make changes quickly and easily.
Click on images to view larger.
|

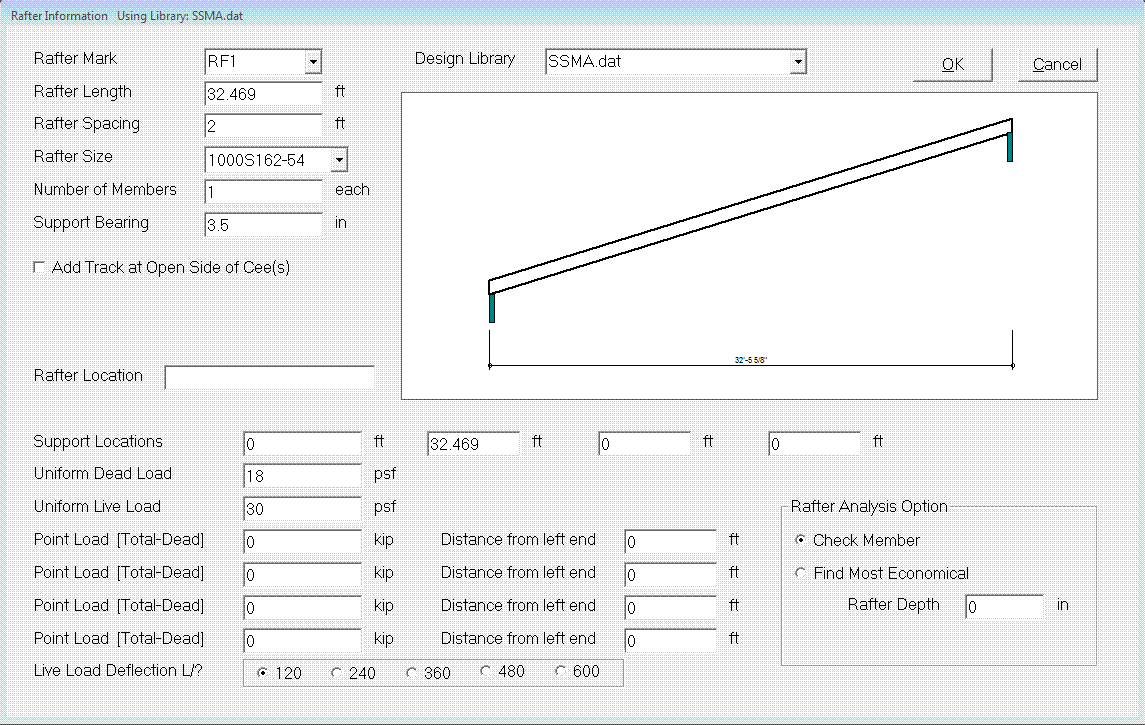

 Rafter |

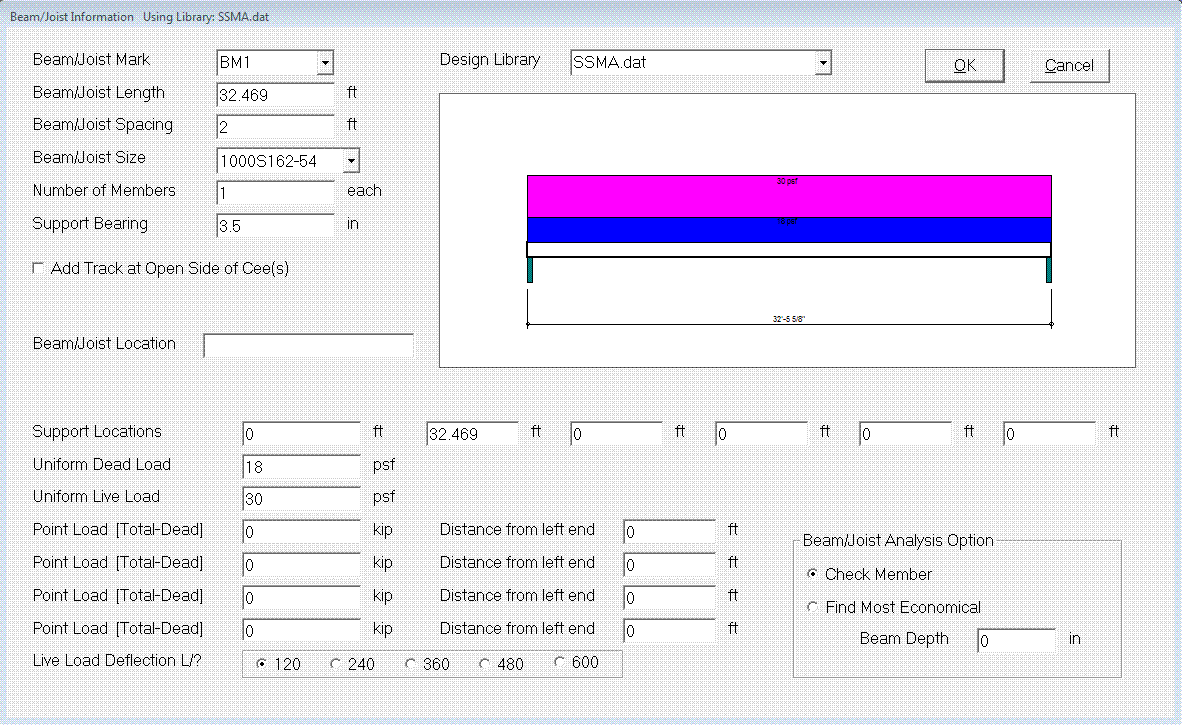

 Floor-joist-beam |
|
 Header |

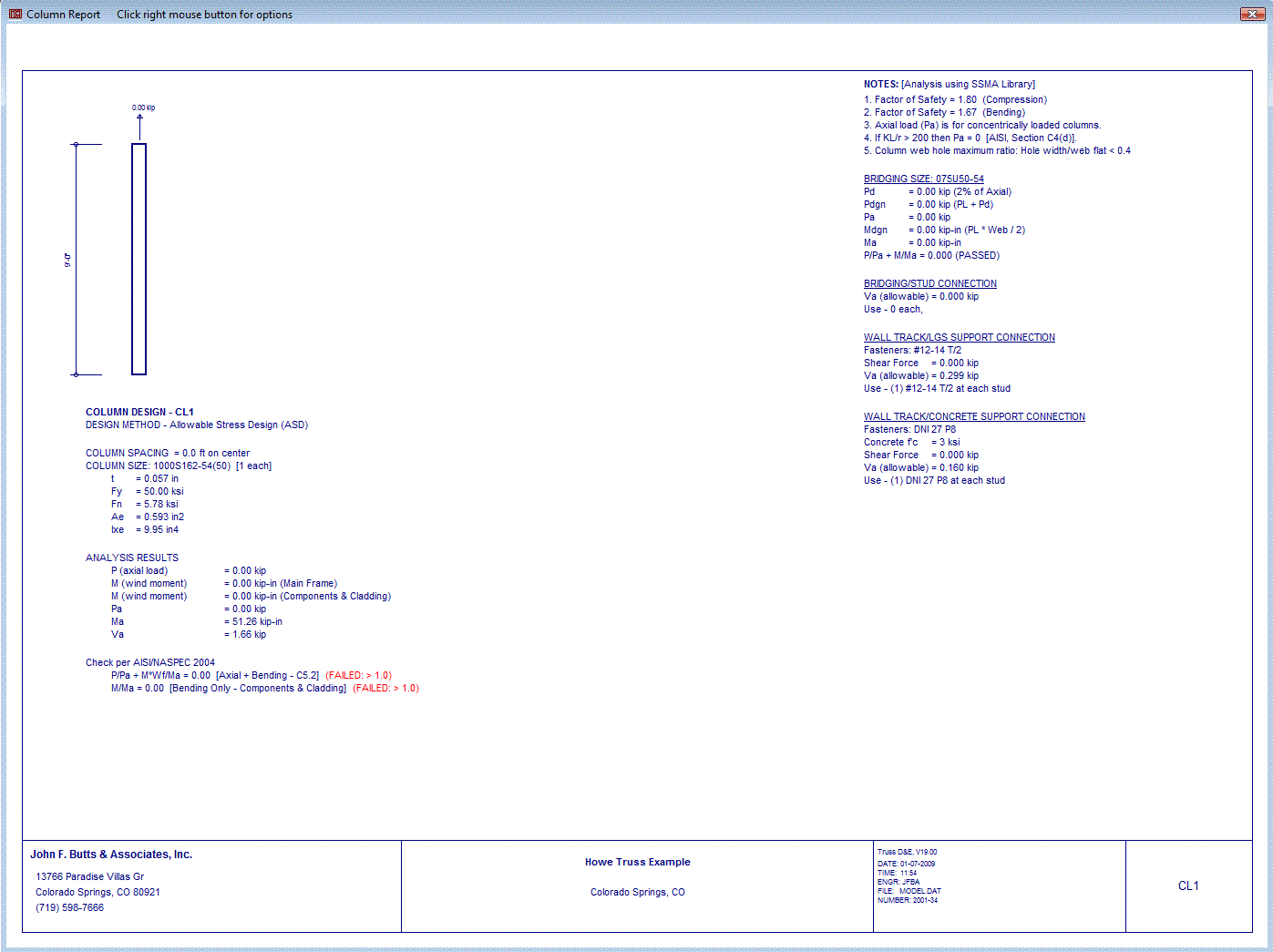

 Column |
|

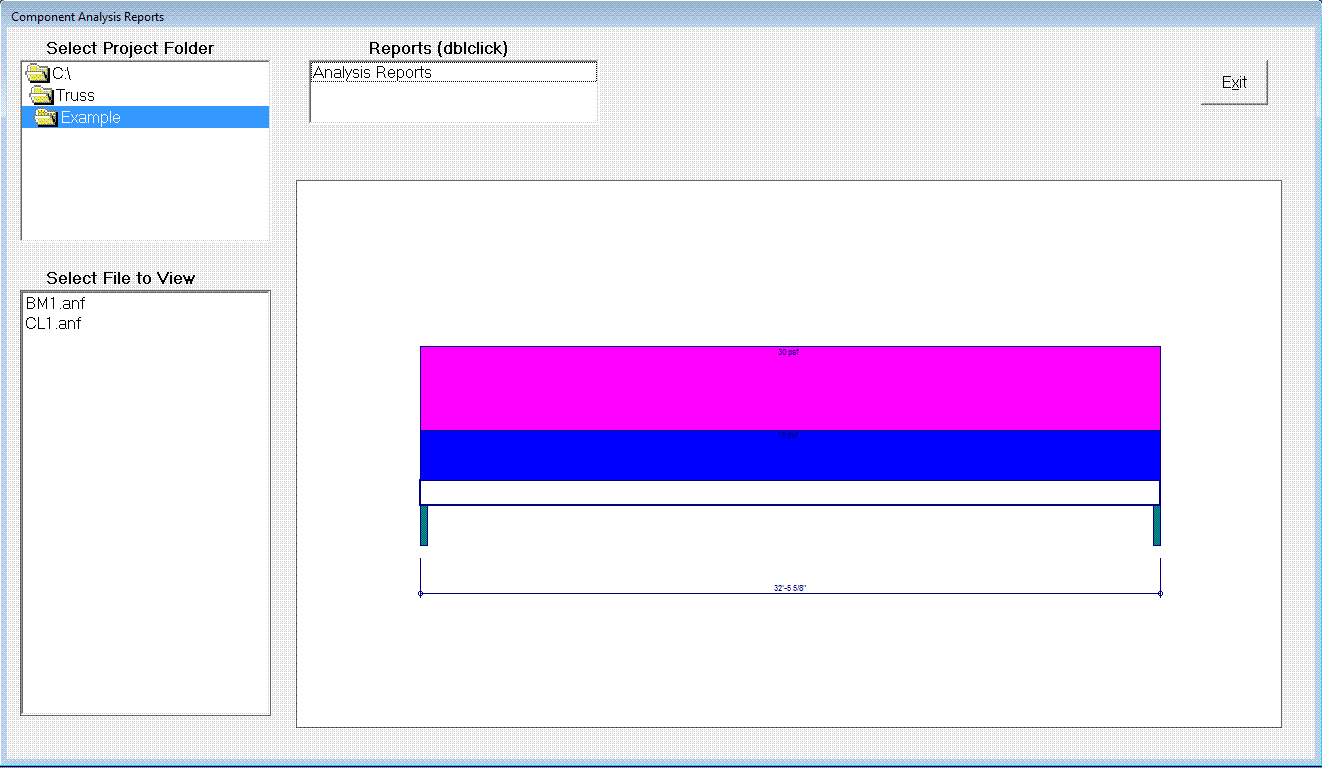

 View-reports |

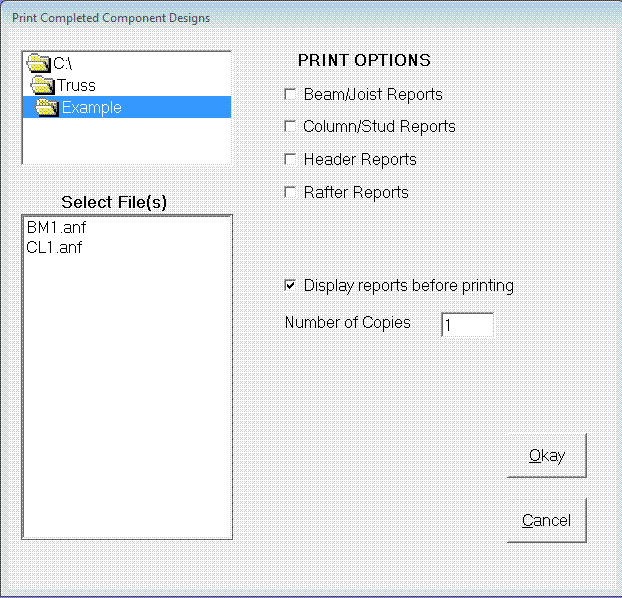

 Print-reports
|
|
