WallPanelDraw is a drawing program for wall panels. Wall Panels can be fabricated from either light-gage steel, structural steel, stainless steel, or aluminum material. With the use of WallPanelDraw, considerable time and expense can be saved in drawing and fabricating wall panels. WallPanelDraw does not include any analysis.
It is easy to use and learn. This software package will create wall panels and fabrication drawings in minutes. This program is great for contractors who are building curtain walls or have design specifications given to them by an engineer and need to create a drawing to fabricate the walls.
Features
Set stud spacing
Metric and Imperial Units
Print
Cost report
Wall components
Material Cut lists
Shop drawing
Review layouts
Set Wall Trim Rules for the entire project.
Add and change openings for Doors and Windows easily.
View and edit drawings of wall panels in seconds.
Simple Input screens
Set wall default data
Create door and window schedules to input openings quickly
Click image to view larger

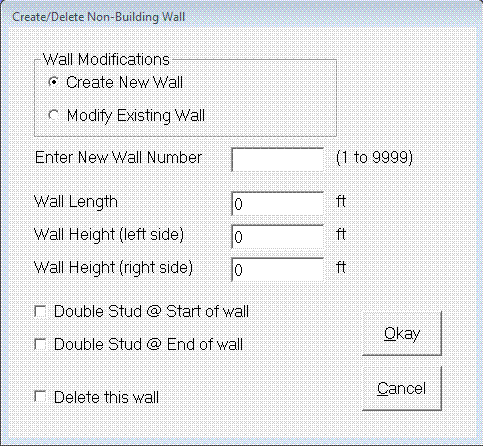

 Wall_input |

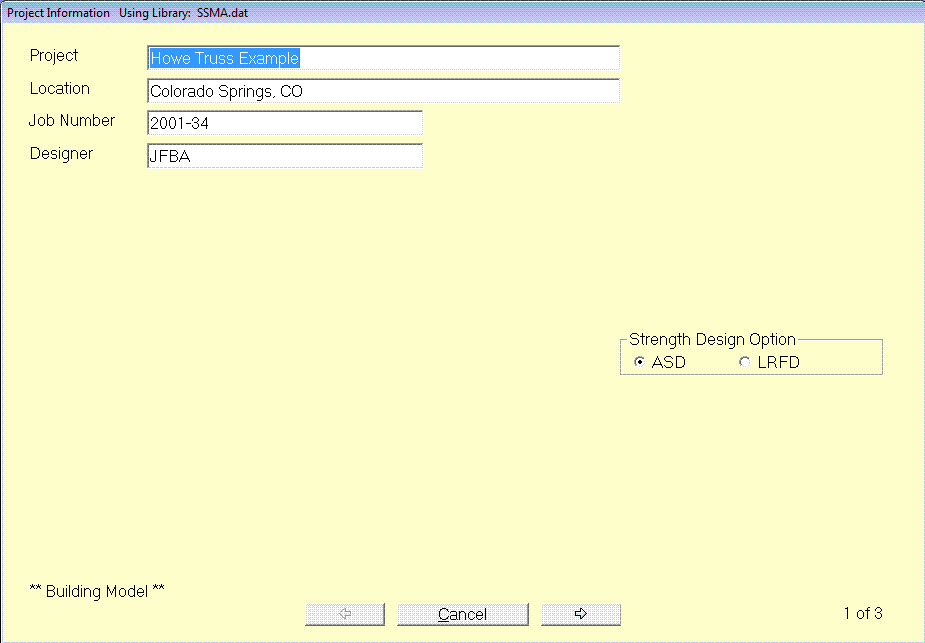

 Input_1 |

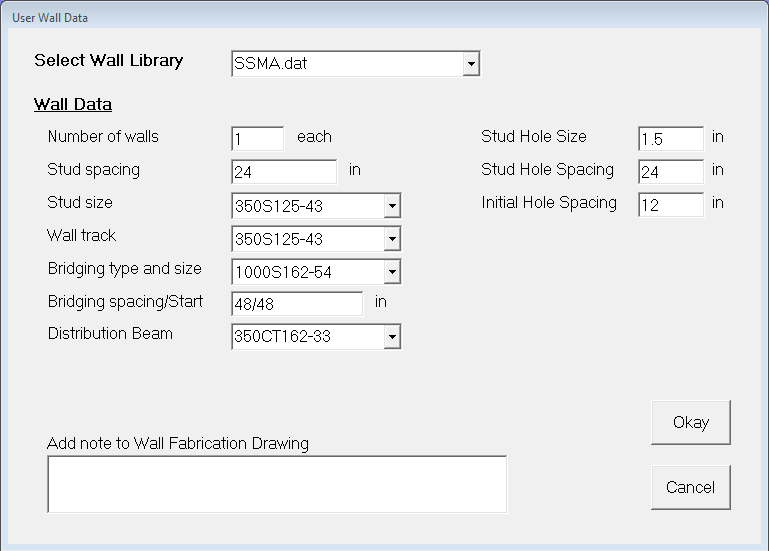

 Default_wall_data |
 Wall_trim_rules |

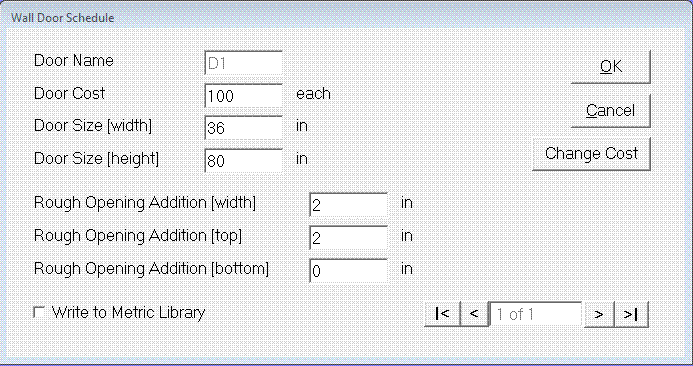

 Door_schedule |

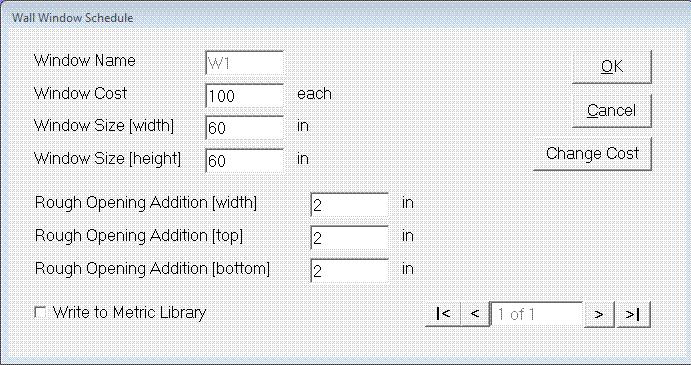

 Window_schedule |
|
